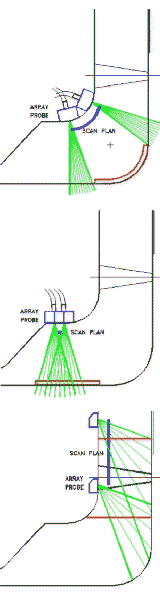

Nozzle inspection

Application example

Probes

Linear phased array probes with wedge
Integrated water system
Custom housing for probe holder compatibility

2 MHz 32 elts phased array probe
with integral wedge and water
coupling system for nozzle inspection

Technique

Pulse echo technique
Automated inspection
Contact with water or oil film

Benefits

High sensitivity and signal/noise ratio
Inspection flexibility thanks to phased array technique
Access to difficult areas
Reliability in industrial using conditions including radiation

Courtesy Tecnatom
